Product Introduction
TPO roofing is a durable, UV-resistant single-ply membrane used for flat roofs, featuring heat-welded seams and long-lasting performance. Outstanding weatherability and UV resistance make TPO roofing membranes the preferred choice for premium roofing waterproofing systems.
Project-Based Insights
Hot year-round, 27–28°C. Wet season May–Nov with heavy rain (~2,000 mm). Dry season Dec–Apr. Abundant sunshine (~2,500 h). UV index very high, typically Aug to Sep.
Weidun has appointed the following regional distributors in Southeast Asia:
Matrix Chemical – Ho Chi Minh City, Vietnam
Tmassif Construction Chemical – Manila, Philippines
This single-ply roofing membrane offers a decisive technical edge. Formulated to resist water-logging and tropical heat, the sheets create a permanent moisture seal that formulated with UV stabilizers and antioxidants to resist aging, cracking, and performance loss in exposed environments.
Humidity Resistance
Service Life
Desert climate, scorching summers over 40°C, mild winters. Extremely arid (~60 mm rain). Year-round intense sunshine (~3,900 h). UV index very high, reaching 8–11.
Weidun has appointed the following regional distributors in the Middle East:
Procare Building Supplies – Dubai, UAE
Izomaks – Riyadh, Saudi Arabia
The thermal challenges in the Middle East can cause standard materials to fail. But our TPO membranes remain structurally sound even when surface temperatures soar. In high-density urban developments where material durability is important, our systems provide a heat-reflective barrier that protects structural foundations and reduces cooling costs.
High Temperature Endurance
Water Pressure Ressistence
Mediterranean semi-arid climate, hot dry summers 26–27°C, mild wet winters (~317 mm rain). Abundant sunshine (~3,900 h). UV index high, 8–9 in summer.
Weidun has appointed the following regional distributors in North Africa:
Our membranes are favored across the diverse landscapes of North Africa because of their ability to withstand constant expansion and contraction. Whether protecting coastal infrastructure or inland developments, the chemical stability of the TPO compound ensures the waterproofing layer remains flexible and effective over a long service life.
Protection Excellent
Waterproof Integrity
Quick Product Guide
Everything contractors, architects, and project owners need to know before selecting this waterproofing system.
Weidun®WD005 is more than a simple barrier. Furthermore, it is a structural asset. This TPO membrane provides the necessary protection for concrete roofing systems and steel roofing systems.
Currently, most high-end steel structure roofing systems use TPO membranes, primarily due to their excellent aging resistance in exposed applications.
Weidun®WD005 TPO Roofing Membrane is used on exposed commercial, residential, and civil infrastructure roofs, making it especially ideal for large-scale projects and steel deck structures. It performs well across diverse global environments, from high-heat and high-UV regions like the Middle East to heavy-precipitation areas in Southeast Asia and North Africa.
Mechanically attached and fully adhered systems are the two primary installation methods for TPO roofing membranes. Professional installation by experienced contractors is strongly recommended to ensure reliable waterproofing performance and long-term durability. Please contact Weidun’s sales team for detailed installation instructions and technical support.
Why Choose US?
Weidun® WD005 TPO roofing membranes are manufactured to meet the performance requirements of ASTM D6878, providing outstanding UV resistance, weatherability, dimensional stability, and long-term waterproofing performance for commercial and industrial roofing systems. We have a strong global presence with our waterproofing materials sold in more than 35 countries.
A primary advantage of this single-ply roofing material over traditional membranes is its performance in exposed applications. Most waterproofing membranes require a protective layer of gravel to survive environmental exposure. WD005, on the other hand, is specifically engineered to perform while fully uncovered.
Offers high elasticity and recovery to maintain structural integrity across various temperature ranges.
The single-ply construction reduces the dead load on the roof structure to ease manual handling and installation.
Tested at 15.8 MPa to ensure the membrane will not tear under structural shifting or high-wind uplift.
Maintains absolute watertightness even under a constant pressure of 0.3 MPa to ensure a dry interior environment.
Products Comparison
This thermoplastic polyolefin sheet serves as a high-performance foundation for your waterproofing system. It possesses a flexible base that absorbs structural movement and provides a primary watertight seal. When installed as a single-ply or part of a multi-layer system, it ensures the structural envelope remains impervious to moisture ingress even under mechanical stress.

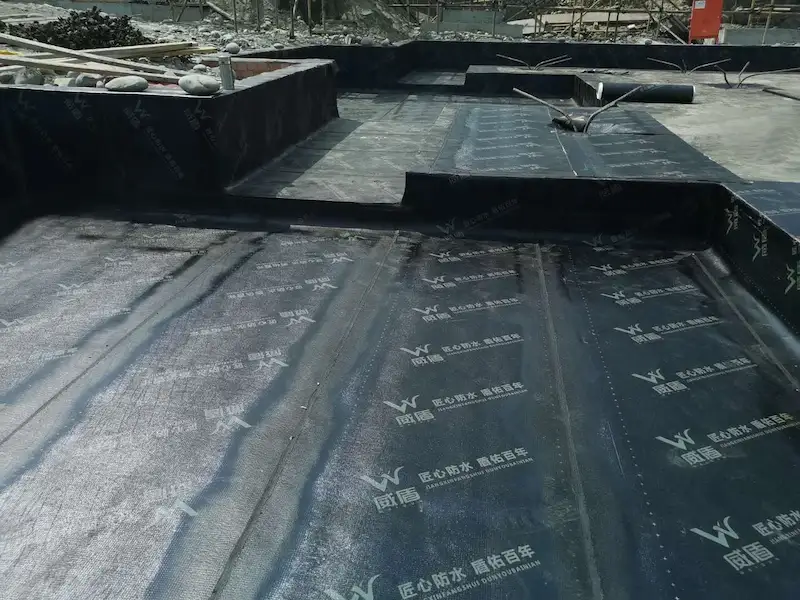

For projects where torches or open flames are prohibited, our self-adhesive membrane provides a durable SBS-modified solution. It is a preferred choice for low-slope areas and primed substrates where peel-and-stick safety is the priority. However, this product is not suitable for exposed applications and must be protected with a cement mortar to ensure long-term waterproofing performance.
Technical Performance
| Primary Goal | High-reflectivity, single-ply roofing | Multi-ply structural waterproofing |
| Surface Type | Smooth (Naturally UV Resistant) | Granule (Mineral Protected) |
| Installation | Hot-air welded or Mechanical | Torch-applied or Self-adhesive |
| Weight Logic | Lightweight; minimizes roof load | Heavier; adds structural mass |
| Steel Roof Fit | Excellent (Industry Standard) | Moderate (Requires base sheets) |
While both systems provide reliable waterproofing protection, they are designed for different project requirements.
TPO roofing membranes offer outstanding weatherability, UV resistance, and long-term outdoor durability, making them the preferred choice for exposed commercial and industrial roofing systems, especially metal roofs. However, installation requires trained roofing professionals using hot-air welding and mechanical fastening or fully adhered systems.
In contrast, self-adhesive bitumen membranes are a cost-effective and versatile waterproofing solution. They are easy to install without open flames, making them suitable for a wide range of applications, including roofs, basements, foundations, balconies, and other below-grade waterproofing projects.
In general, TPO is the ideal solution for premium exposed roofing systems, while self-adhesive bitumen membranes remain the practical choice for versatile, economical waterproofing across both roofing and underground structures.
Expert-Insight
Inspect the roof substrate to ensure it is structurally sound, clean, and dry. Remove rust, dust, grease, loose coatings, and other contaminants that may affect membrane performance. Repair damaged areas and ensure the surface is smooth before installation.
Lay XPS insulation boards or other approved insulation materials according to the roofing system design. Secure the insulation firmly to the roof deck and ensure the boards are tightly fitted with a level surface to provide stable support for the TPO membrane.
Position the TPO roofing membrane and install it using a mechanically attached or fully adhered system, depending on the project specifications. Hot-air weld all overlaps with professional welding equipment to create continuous watertight seams. Finally, inspect each welded joint to ensure complete fusion and long-term waterproofing performance.
Testimonials
During our initial communication, I was concerned that too many customization requests might be difficult to fulfill. However, WEIDUN Company has satisfied almost all of them.
Minh Nguyen - Vietnam
As a subcontractor, every time after the construction inspection, the main contractor is extremely satisfied with our product quality. This has been our sixth year of cooperation with WEIDUN.
Admad Arif - Dubai
The temperature difference between day and night in our region is quite significant. However, the products of WEIDUN have withstood the test. Although the prices of these products are relatively high, they have indeed been flawless.
Saleh Abbas - Libya
During our initial communication, I was concerned that too many customization requests might be difficult to fulfill. However, WEIDUN Company has satisfied almost all of them.
Minh Nguyen - Vietnam
As a subcontractor, every time after the construction inspection, the main contractor is extremely satisfied with our product quality. This has been our sixth year of cooperation with WEIDUN.
Admad Arif - Dubai
The temperature difference between day and night in our region is quite significant. However, the products of WEIDUN have withstood the test. Although the prices of these products are relatively high, they have indeed been flawless.
Saleh Abbas - Libya
Production To Shipment
Choose the Right Products
Our product line is manufactured to match the specific technical demands of underground civil engineering and industrial roofing.
FAQ’s
Steel decks expand and contract significantly. TPO’s lightweight nature and mechanical fastening allow it to secure to the steel without the weight of bitumen or the risks of torching onto metal.
WD005 integrates UV absorbers and antioxidants directly into the polymer. It prevents chalking and surface cracking common in other materials left exposed to the sun.
Yes. TPO is 100% recyclable and offers high solar reflectance. It reduces energy consumption in buildings.
Yes. Weidun supplies EVA waterproofing membranes in various thicknesses, widths, and roll lengths to meet different project specifications. OEM and private-label services are also available, and our technical team can recommend suitable membrane systems based on your tunnel design and construction requirements.
