Forms permanent bond with post-poured concrete. Prevents lateral water migration under high water tables. High puncture & methane gas resistance Available guarantee of up to 25 years.
Product Highlights
Strong, durable and manufactured to consistent dimensions
Enjoy a zero-maintenance with a 20-year warranty for the quality you can trust
Offer superior performance based on your region's unique climate needs

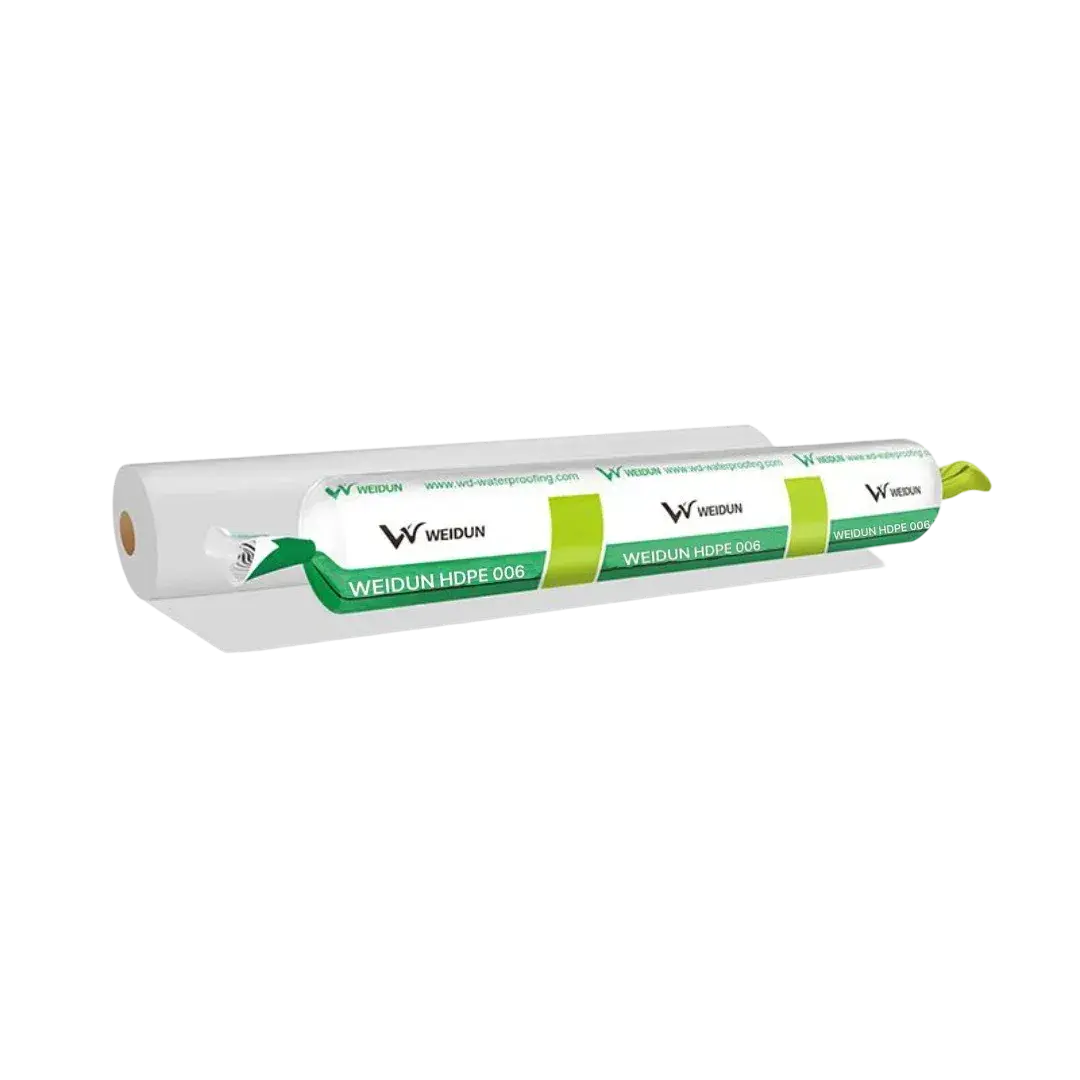

Weidun® 006 HDPE Waterproofing Membrane is widely used in underground and basement waterproofing projects. Membrane closed combined with concrete substrate gives the best waterproofing membrance performance.
Weidun® 006 HDPE Waterproofing Membrane is designed for areas that need to be waterproofed such as basement, balconies.terraces and green roofs.
Ensure that the surface is clean, smooth, and free from any debris and dust.
Cut the membrane to the appropriate size and length as required. Before cutting the membrane, check for any damage or cracks.
Roll out the sheet onto the prepared surface, or install it as per the manufacturer’s instructions.
Use a hot melt welding machine to weld the membrane together.
To prevent damage, support rolls on end in an upright position and store in a clean, dry location, covering as necessary to protect from environmental damage.
Monitor environmental conditions during storage, handling, and application.
| Property | Standard Minimum Value | Weidun Value |
|---|---|---|
| Roll Length min (m) | 10 | 10.01 |
| Tensile Strength at 23°C (N/50mm) | 300 | 357 |
| Elongation at 23°C +/-2°C (%) | 300 | 400 |
| Adhesive strength at 23°C (N/50mm) | 1.5 | 1.5 |
| Low temperature flexibility at -20°C | No crack | No crack |
| Peel strength between membrane and overlap (N/mm) | 1.0 | 1.0 |
| Puncture resistance (N) | 350 | 398 |
| Oil permeability / number of sheets | 0 | 0 |
| Heat resistance at 80°C (2 hours) | No drop | No drop |
| Water penetration (Maintain a water pressure of 0.3 MPa for 120 minutes) | Non-penetration | Non-penetration |
| Property | Value |
|---|---|
| Roll Size* | 10.0 m² |
| Roll Length | 10.0 m |
| Roll Width | 1.0 m |
| Roll Weight | 45.0 kg |
| Roll per Pallet | 30 |
| Full Pallet Weight | 1.35 ton |
Pre-applied fully-bonded HDPE sheet with pressure-sensitive adhesive designed for blind-side underground waterproofing.
