High tear and weld strength via hot-air welding. Fire-retardant and UV resistant. Flexible in cold weather. Available guarantee of up to 20 years.
Product Highlights
Strong, durable and manufactured to consistent dimensions
Enjoy a zero-maintenance with a 20-year warranty for the quality you can trust
Offer superior performance based on your region's unique climate needs

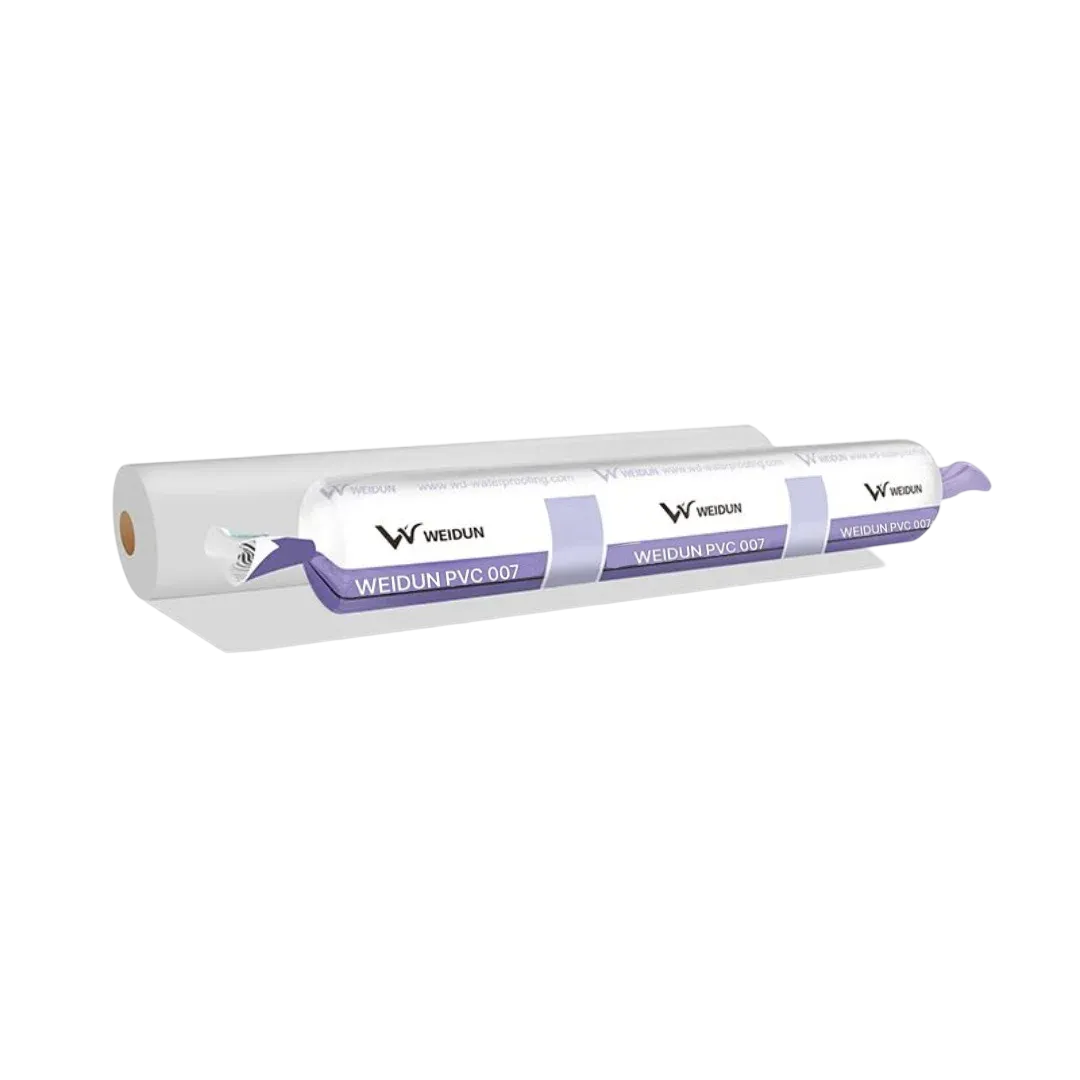

Weidun® 007 PVC Waterproofing Membrane is made from a combination of polyvinyl chloride (PVC) and other additives. PVC has become extremely popular in recent years, presenting an upward trend in the waterproof market.
Weidun® 007 PVC Waterproofing Membrane is used to prevent water and moisture from penetrating a building’s exterior or interior surfaces
Durable: resistant to wear and tear, and can with stand harsh weather conditions.
Flexible: They can be stretched and bent without cracking or breaking.
Versatile: PVC waterproofing membranes can be used in various applications and environments.
Easy to install: They can be installed using various methods, such as adhesion, clamping, or welding.
Cost effective: PVC waterproofing membranes are generally less expensive than other materials.
To prevent damage, support rolls on end in an upright position and store in a clean,dry location, covering as necessary to protect from
environment damage.
Monitor environmental conditions during storage, handling and application.
| Property | Standard Minimum Value | Weidun Value |
|---|---|---|
| Roll Length min (m) | 10 | 10.02 |
| Tensile Strength at 23°C (MPa) | 300 | 357 |
| Elongation at 23°C ±2°C (%) | 15 | 20 |
| Impact resistance at 23°C ±2°C (1.0mm, N) | 0.5 kg·m Non-penetration | Non-penetration |
| Low temperature flexibility at -20°C | No crack | No crack |
| Peel strength between membrane and overlap (N/mm) | 100 | 105 |
| Water penetration (0.3 MPa for 120 min) | Non-penetration | Non-penetration |
| Heat treatment dimensional changes (%) | < 2.0 | 1.3 |
| Parameter | Value |
|---|---|
| Roll Size | 10.0 m² |
| Roll Length | 10.0 m |
| Roll Width | 3.0 m |
| Pail Weight | 45.0 kg |
| Pails per Pallet | 30 |
| Full Pallet Weight | 1.35 ton |
Premium Polyvinyl Chloride (PVC) waterproofing membrane engineered for high-durability roofing and underground containment.

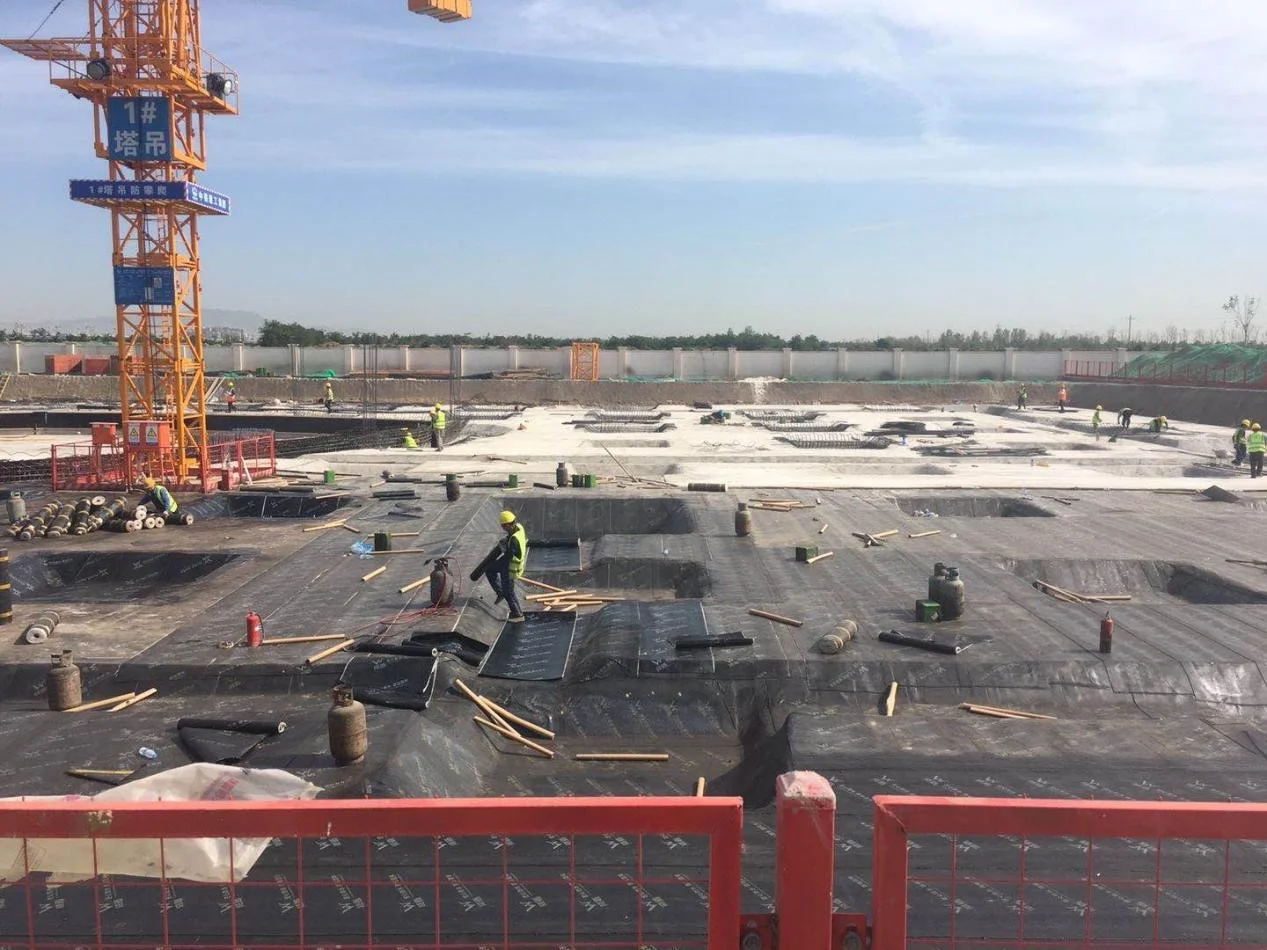

More About Installation
Clear, honest answers about how our Product.
