Weidun® 007 PVC Waterproofing Membrane is made from a combination of polyvinyl chloride (PVC) and other additives. PVC has become extremely popular in recent years, presenting an upward trend in the waterproof market.
Product Highlights
Strong, durable and manufactured to consistent dimensions
Enjoy a zero-maintenance with a 20-year warranty for the quality you can trust
Offer superior performance based on your region's unique climate needs
Weidun® 007 PVC Waterproofing Membrane is made from a combination of polyvinyl chloride (PVC) and other additives. PVC has become extremely popular in recent years, presenting an upward trend in the waterproof market.
Weidun® 007 PVC Waterproofing Membrane is used to prevent water and moisture from penetrating a building’s exterior or interior surfaces
Durable: resistant to wear and tear, and can with stand harsh weather conditions.
Flexible: They can be stretched and bent without cracking or breaking.
Versatile: PVC waterproofing membranes can be used in various applications and environments.
Easy to install: They can be installed using various methods, such as adhesion, clamping, or welding.
Cost effective: PVC waterproofing membranes are generally less expensive than other materials.
To prevent damage, support rolls on end in an upright position and store in a clean,dry location, covering as necessary to protect from
environment damage.
Monitor environmental conditions during storage, handling and application.
| Property | Standard Minimum Value | Weidun Value |
|---|---|---|
| Roll Length min (m) | 10 | 10.02 |
| Tensile Strength at 23°C (MPa) | 300 | 357 |
| Elongation at 23°C ±2°C (%) | 15 | 20 |
| Impact resistance at 23°C ±2°C (1.0mm, N) | 0.5 kg·m Non-penetration | Non-penetration |
| Low temperature flexibility at -20°C | No crack | No crack |
| Peel strength between membrane and overlap (N/mm) | 100 | 105 |
| Water penetration (0.3 MPa for 120 min) | Non-penetration | Non-penetration |
| Heat treatment dimensional changes (%) | < 2.0 | 1.3 |
| Parameter | Value |
|---|---|
| Roll Size | 10.0 m² |
| Roll Length | 10.0 m |
| Roll Width | 3.0 m |
| Pail Weight | 45.0 kg |
| Pails per Pallet | 30 |
| Full Pallet Weight | 1.35 ton |

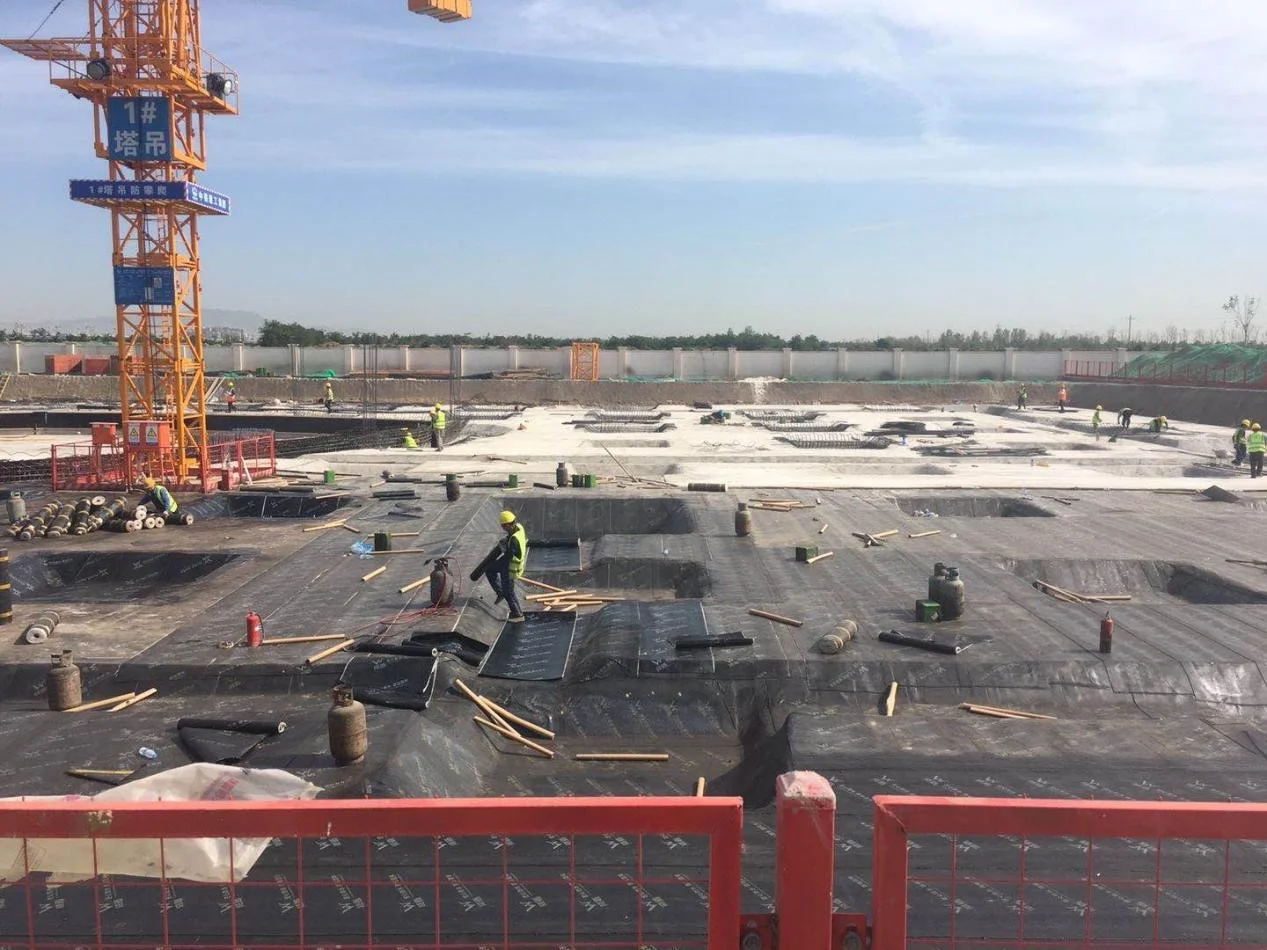

Product Application Process
Weidun® 007 PVC Waterproofing Membrane installation process involves surface preparation, priming, cutting and positioning, heating and bonding, sealing, and the installation of a protective layer. Careful attention to each step is necessary to ensure a high-quality and long-lasting waterproofing system.
